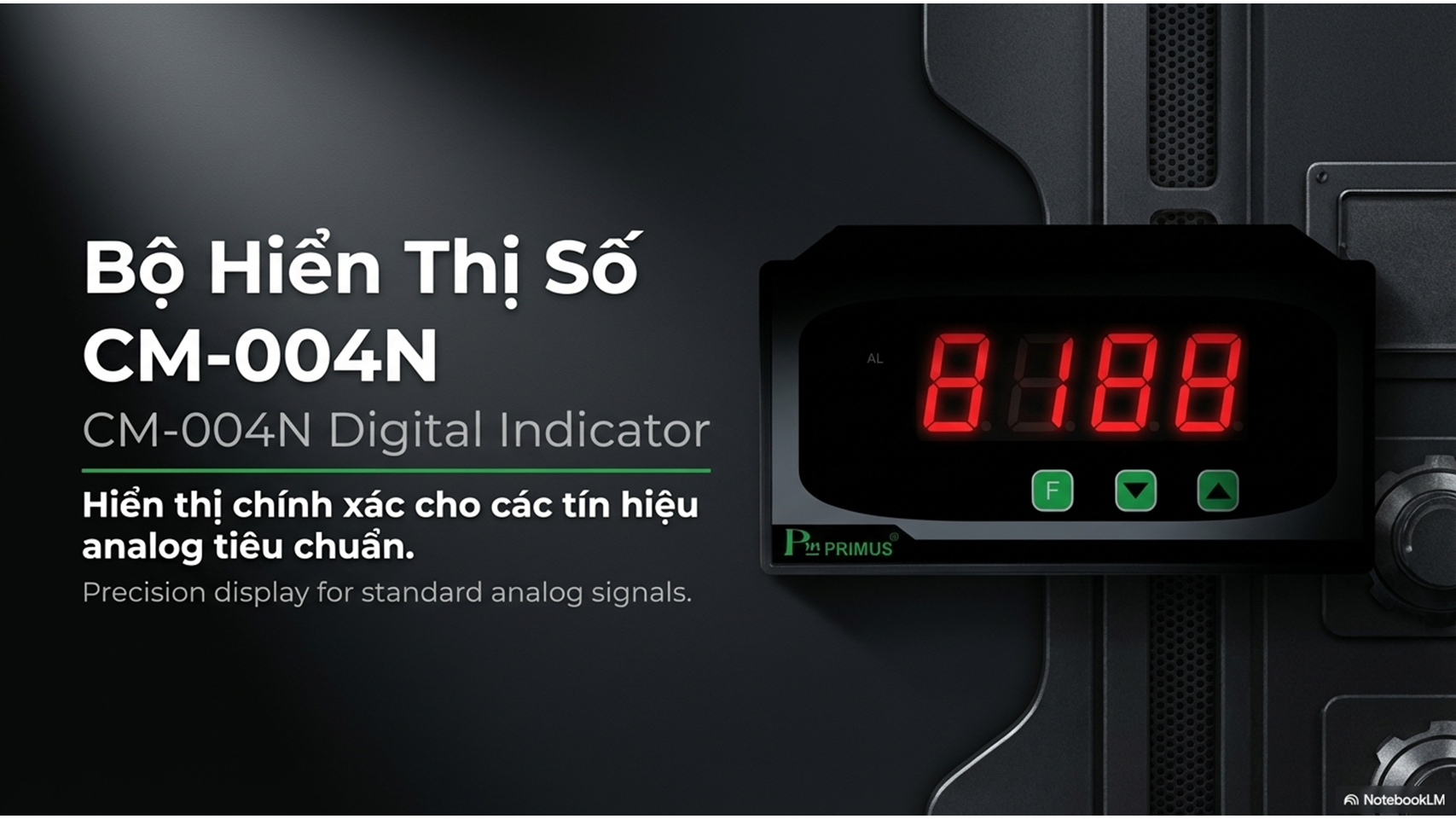

CM-004N/ Đồng hồ hiển thị kỹ thuật số / Digital Indicator
CM-004N/ Đồng hồ hiển thị kỹ thuật số / Digital Indicator
BỘ HIỂN THỊ Kỹ Thuật Số , Model: CM-004N
MÔ TẢ SẢN PHẨM

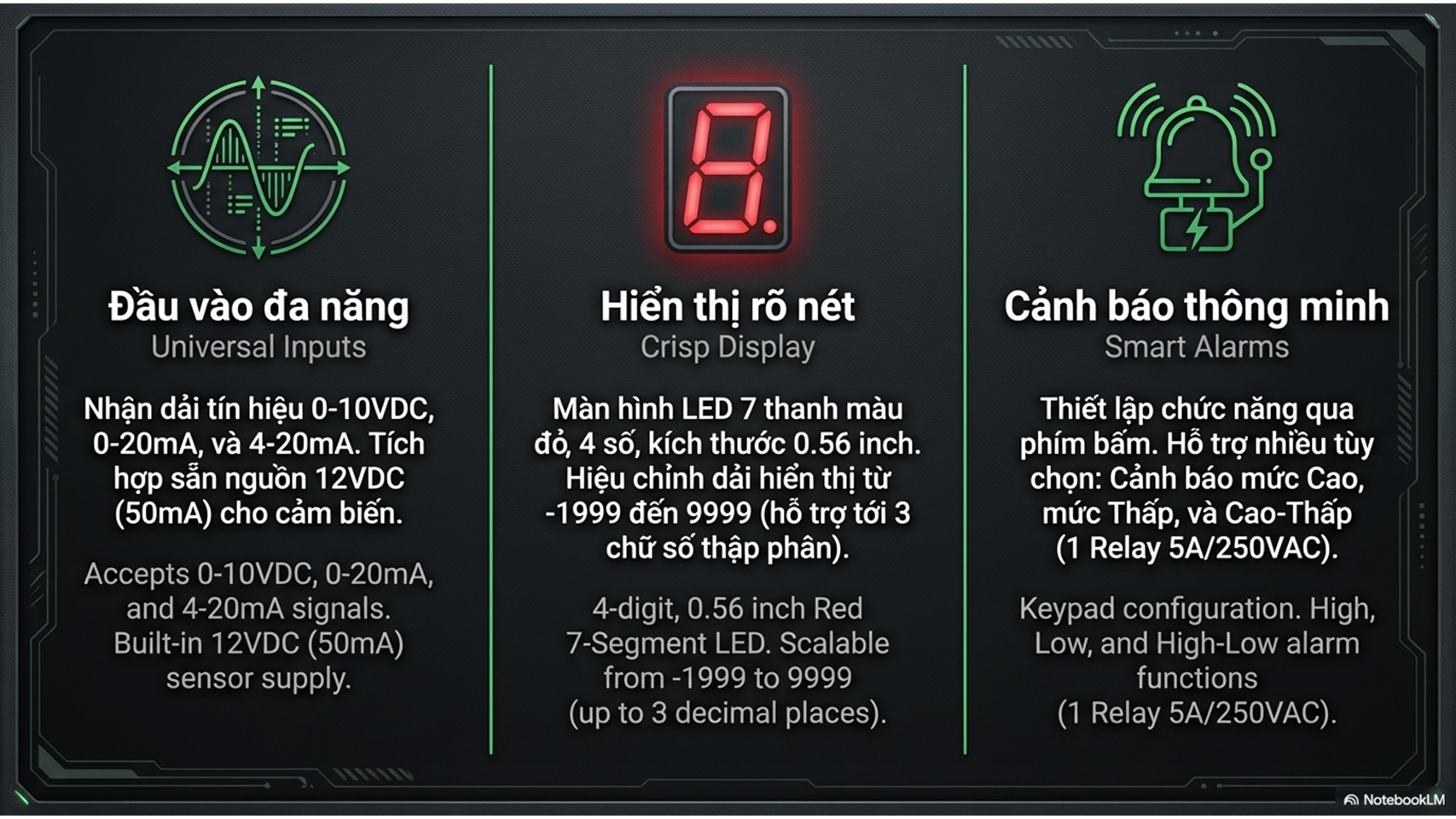

CM-004N là bộ hiển thị số chấp nhận tín hiệu đầu vào 0-10 VDC, 0-20 mA và 4-20 mA.
Màn hình LED 7 đoạn màu đỏ, 4 chữ số, kích thước 0.56 inch.

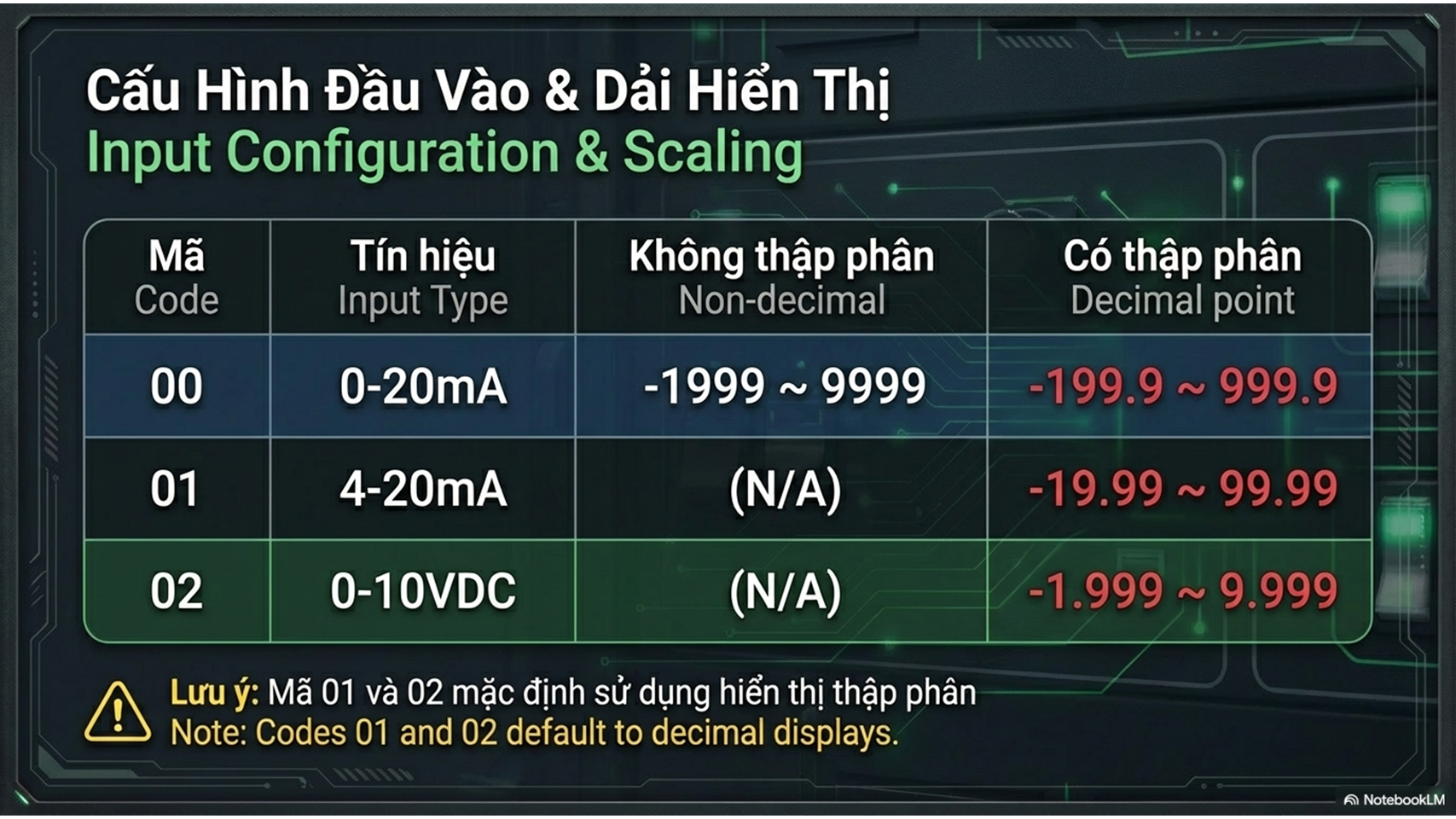

Dãy hiển thị từ -1999 đến 9999, có thể cài đặt tối đa 3 chữ số thập phân.
Giới hạn cao (High Limit) và giới hạn thấp (Low Limit) có thể cài đặt thông qua bàn phím nhấn (Keypad Switch).

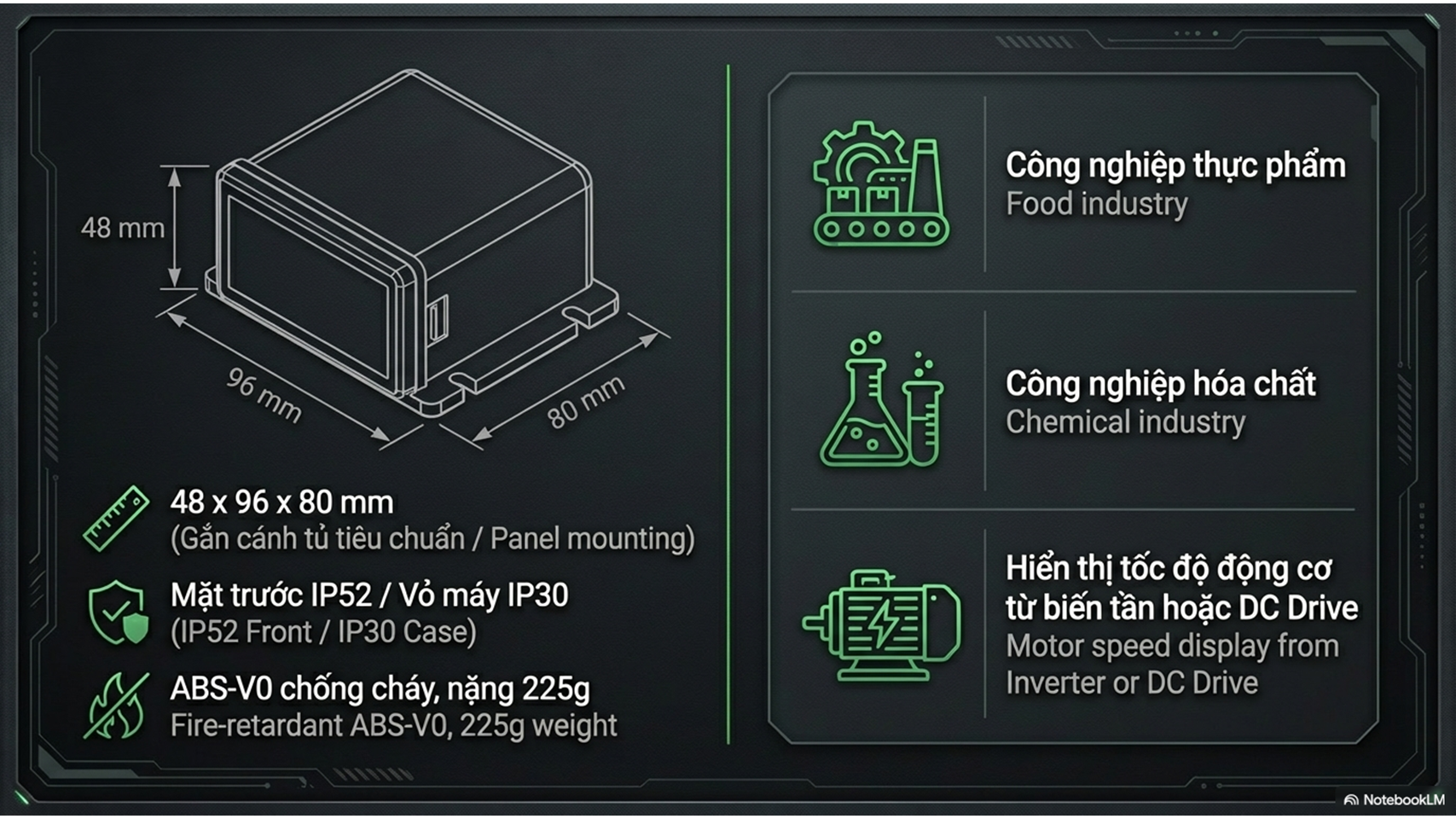

Thiết kế nhỏ gọn, phù hợp lắp đặt trong tủ điều khiển hoặc những không gian hạn chế.
Thích hợp để hiển thị tốc độ động cơ từ biến tần hoặc DC Drive.
Chức năng báo động được cài đặt qua bàn phím nhấn, bao gồm nhiều tùy chọn: Báo động cao (High Alarm), Báo động thấp (Low Alarm) và Báo động cao-thấp (High-Low Alarm).

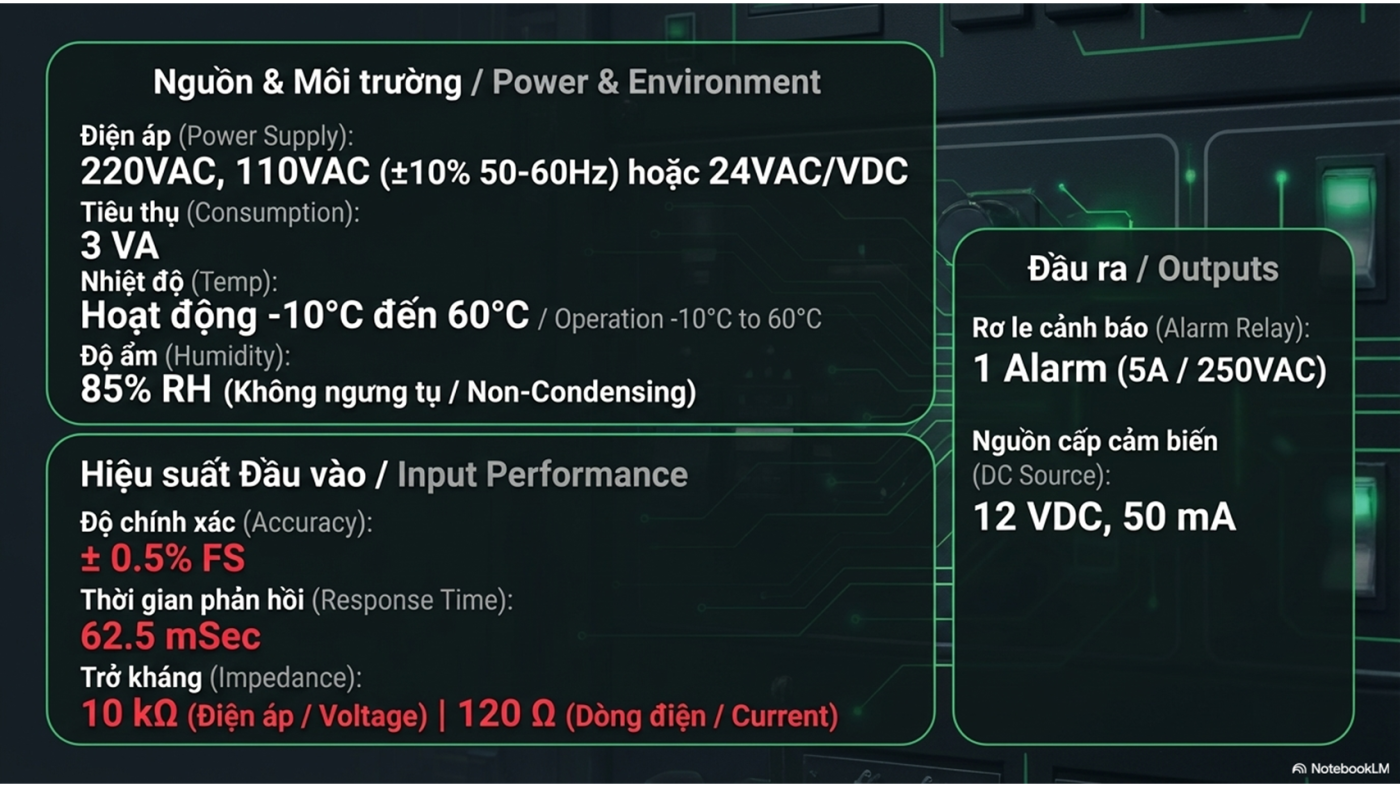

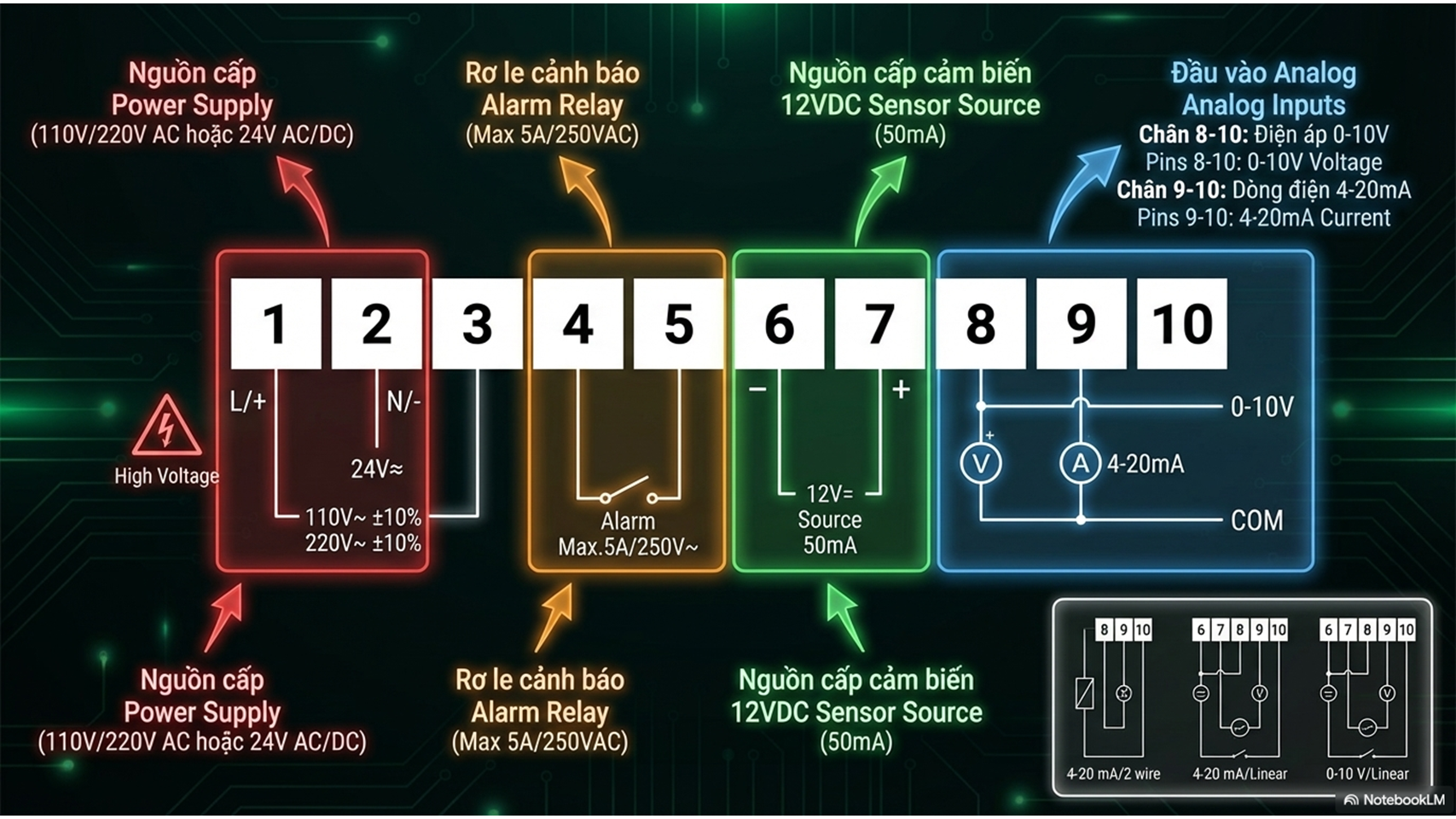

Cung cấp nguồn 12 VDC cho các bộ chuyển đổi tín hiệu (Transducer).
ỨNG DỤNG
Lắp đặt trong các tủ điều khiển.
Hiển thị giá trị các quy trình dưới dạng tín hiệu analog chuẩn.
Ngành công nghiệp thực phẩm.
Ngành công nghiệp hóa chất.
ĐẶC ĐIỂM NỔI BẬT
Chấp nhận đầu vào 0-10 VDC, 0-20 mA, và 4-20 mA trong cùng một thiết bị.
Màn hình LED 7 đoạn màu trắng, 4 chữ số, kích thước 0.56 inch.
Hiển thị từ -1999 đến 9999, có thể cài đặt tối đa 3 chữ số thập phân.
Giới hạn cao và thấp có thể cài đặt bằng bàn phím nhấn.
Thiết kế nhỏ gọn, phù hợp lắp đặt trước các tủ điều khiển có không gian hạn chế.
Phù hợp để hiển thị tốc độ động cơ từ biến tần, DC Drive, v.v.
Chức năng báo động đa dạng, có thể lựa chọn báo động cao, báo động thấp và báo động cao-thấp.
DESCRIPTION
• The CM-004N is a digital display that accepts 0-10 VDC, 0-20 mA and 4-20 mA inputs
• Display with 7-Segment red 4 digits, 0.56 inches
• Outputs from -1999 to 9999 can be set up to 3 decimal places
• High Limit and Low Limit Range can be set by setting the Keypad Switch
• Small, compact. Suitable for mounting the cabinet. With limited space
• Suitable for installation in control cabinet. To show the speed of the motor from the inverter or DC Drive is
• Alarm Function is set by Keypad Switch. There are many options including High Alarm, Low Alarm and High-Low Alarm
• 12VDC power supply for Transducer
APPLICATION
• Installed in cabinets.
• Display of all the processes from the standard analog signal
• Food industry
• Chemical industry
Features Digital Indicator brand PM
• CM-004N Digital Indicator is a digital display accepts input 0-10 VDC,0-20 mA. and 4-20 mA in the same unit
• display with 7-Segment white 4 digits size 0.56 inches
• Display from -1999 to 9999, can set up to 3 decimal points
• High Limit and Low Limit Range can be set by setting from Keypad Switch
• Small and compact. Suitable for installation in front of cabinets with limited space
• Suitable for installation on control cabinets. To display motor speed from Inverter, DC Drive etc.
• Alarm Function can be set from Keypad Switch, can be selected in many types, including High Alarm, Low Alarm and High-Low Alarm.
• 12 VDC power supply is provided. with Transducer
Applications Digital Indicator
• Installed in the control cabinet
• To display various process values in the form of standard analog signals
• Food industry
• Chemical industry
Features Digital Load Cell Indicator Brand PM
• Weight signal transducer. Or voltage from Load Cell (Strain-Gauge) to be a standard digital analog signal with a display for easy operation • Receive input
from Strain-Gauge 1.5, 2, 2.5, 3, 3.3 mV/V by Excite Voltage 5V or 10V
• Standard analog signal output
– Voltage : 0-10 VDC
– Current : 4-20 mA
• Input and output Independent from each other (Isolation).
• Input and output. Can adjust the power supply via High-Low Limit via Push Button, allowing to set Range to convert signal as needed
• Able to program signal Output to work in either Direct or lnverse
• Digital 7-Segment display screen 1 row, 6 digits, which can display signals on the Input and Output sides.
• Peak Hold Function showing maximum value and Tare Zero
• Digital Input for operation (contact type)
• DIN Rail Mounting
• 3 Alarm Relay Output 4 Alarm Function
• 4 decimal places
• Sensor correction -199999 to 999999 to adjust Input
• Can contact Computer by RS485 MODBUS RTU Protoco
