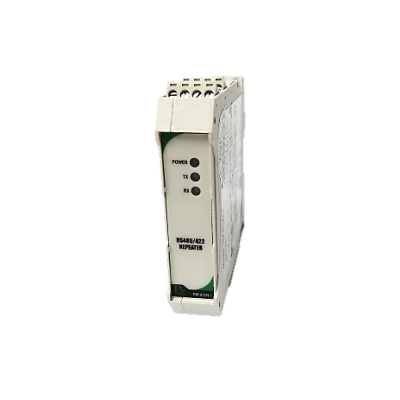

RM-012N-1: REPEATOR FOR USB/RS-232 TO RS-485 CONVERTER

Mô tả

RM-012N-1: REPEATOR FOR USB/RS-232 TO RS-485 CONVERTER

RM-012N-1: REPEATOR FOR USB/RS-232 TO RS-485 CONVERTER

DESCRIPTION

• Signal amplification equipment to increase the transmission distance RS-422 / RS-485, far more than the previous one

• Can be used with RM-012N-D and RM-012N-E

• Communication rate of Auto Baud Rate Max. 57.6 kbps

• LED display of RS-485, Tx, Rx

• There is a 9 VDC adapter to supply power supply voltage to RM-012N-1.

OPERATION

RM-012N-1 is a device for amplifying the signal to increase the transmission distance. RS-422 / RS-485 Can be used with RM-012N-D (USB to RS-422 / RS-485 Converter) and RM-012N-E (RS-232 to RS-422 / RS-485 Converter) in case Such Converter devices cannot transmit signals.

SPECIFICATION

RM-012N-1: REPEATOR FOR USB/RS-232 TO RS-485 CONVERTER

DIMENSION

RM-012N-1: REPEATOR FOR USB/RS-232 TO RS-485 CONVERTER

CIRCUIT DIAGRAM

RM-012N-1: REPEATOR FOR USB/RS-232 TO RS-485 CONVERTER

ORDER CODE

RM-012N-1: REPEATOR FOR USB/RS-232 TO RS-485 CONVERTER
